Smart Dashcam

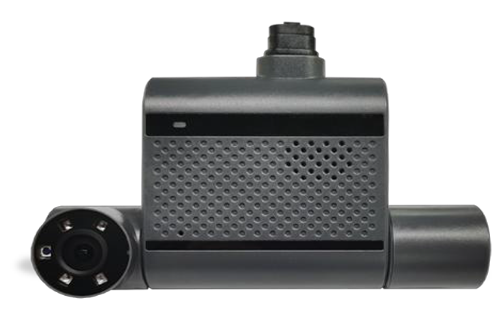

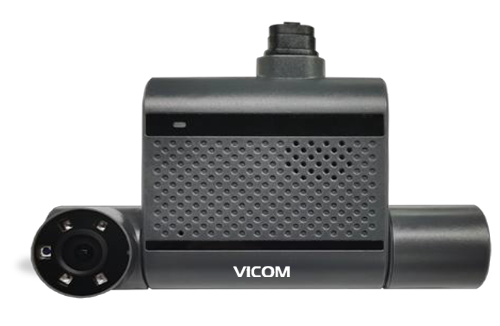

3-CH DashCam:

This product integrates vehicle video monitoring, driving recorder, ADAS (Advanced Driver Assistance System), and DSM (Driver Safety Monitoring system) into a single platform. It supports analog high definition video recording, along with reliable storage and playback functions. By combining 3G/4G wireless communication technology with GNSS positioning, the system enables real-time uploading of video footage, vehicle driving data, driving behaviour analysis, and alarm/event evidence. Through a centralized control and management platform, vehicles can be remotely monitored, analysed, and managed in real time, significantly improving fleet safety, operational efficiency, and regulatory compliance

Product characteristics and specifications

Built-in high performance image processing chip
H.264/H.265 encoding, high compression ratio
Built-in front facing 1080P DSM camera
Built-in rear facing 1080P ADAS camera
Support 1CH 1080P AHD
DSM/ADAS

Power supply

Professional In-Vehicle power design, 9-32V DC Wide Voltage Range
Multi protection circuits like under-voltage, short, reversed plug-in
Smart power management system, shutdown under low voltage, low
consumption when standby

Data storage

Special file management system to encrypt and protect the data
Proprietary technology to detect the bad track of the TF card which can
make sure the continuity of video and long service life of the TF card
Built-in ultra capacitor, avoid data loss and TF card damage caused by
sudden outage
Support TF card storage, maximum 512G

Wireless module

Built-in 4G module
Support GPS/BD/GLONASS, high sensitivity, fast positioning
WIFI module (optional), frequency 2.4GHz
Built-in 4G, GNSS, WIFI antenna

AI Powered Safety Features

Advance Driver Assistance System (ADAS)

Forward Collusion Warning Alert
Lane Departure Warning Alert
Forward Unsafe Distance Alert
High Speed limits Alert
Harsh Braking Alert
Geo fencing Alert

Driver Safety Monitoring (DSM)

Distracted Driving Alert
Drowsiness Alert
Excessive Yawning Fatigue Alert
Smoking Alert
Seat Belt Non-wearing Alert
Mobile Phone Usage Alert
Camera Obstruction Alert

PARAMETER	PARAMETER SPECIFICATION
Operating System	Embedded Linux
Video Compression	H.265 / H.264
Audio Compression	G.711A / G.711U / G.726
Recording Mode	Automatic / Alarmtriggered
Camera Input	2CH (Built-in 1080P + 1CH AHD)
GNSS	GPS + BDS + GLONASS
Power Input	DC 9V – 32V
Power Consumption	< 10W
Operating Temperature	−20°C to 70°C

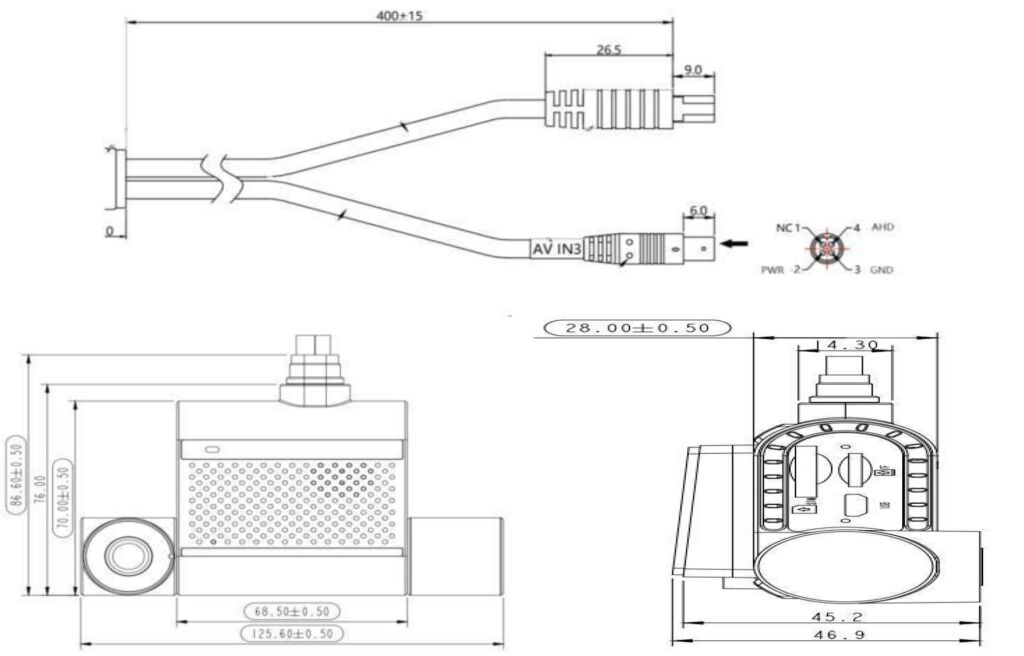

Dimensions	125.6 × 86.6 × 46.9 mm

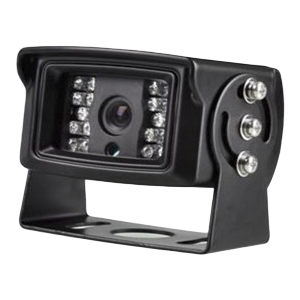

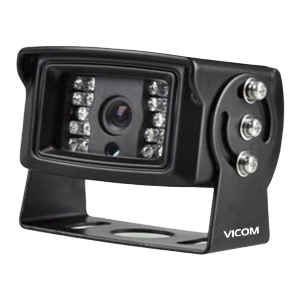

High Definition Rear Camera

Features

Original 1080P CMOS Sensor
2.0MP for 1920*1080P recording
Adaptive 2D/3D Noise Reduction
Anti-thunder, anti-static
Intelligent IR-CUT for Day and Night vision
Metal housing
Waterproof, IP68

Technical Parameter

Parameters:

Model	HDC-C120
Name	AHD Waterproof Camera
Image sensor	1/2.9＂GC2053
Pixel	2.0 MP (1080P)
Minimum illumination	0.01Lux, 0 Lux with IR
Night vision	Yes
Lens type	M12
Infrared	18 pieces infrared lamps, 10 meters IR view distance
Audio	No
Connector	4 PIN aviation connector
SNR	≥42dB
Housing color	Black
Standard	PAL/NTSC (optional)

Specifications:

Operating temperature	-20℃~70℃
Relative humidity	≤90 %
Protection grade	IP68
Lens focus	2.8mm/3.6mm (Default 2.8mm)
Input voltage	DC12V
Power consumption	Rated 3W (IR open)
Dimension	705070 (mm)
